When selecting insulation materials for construction projects, glasswool wall sandwich panels and rockwool wall sandwich panels are two of the most commonly used options. Both materials offer excellent thermal and sound insulation properties, but they also have distinct characteristics that make them suitable for different applications.
In this article, we will explore the differences between glass wool and rock wool wall sandwich panels, analyze their strengths and weaknesses, and help you determine which option is the best for your specific needs. We will also provide data-driven comparisons and insights into their latest trends in the construction industry.

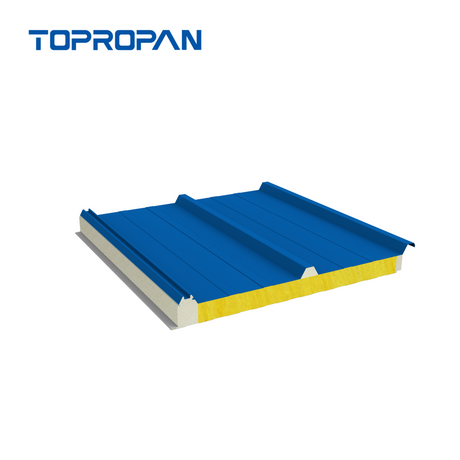

A glasswool wall sandwich panel is a type of composite panel made of three layers: an outer steel sheet, a core layer of glass wool insulation, and an inner steel sheet. The glass wool core is produced by melting glass and spinning it into fine fibers, which are then compressed into a lightweight insulation material.
Excellent Thermal Insulation: The thermal conductivity of glass wool ranges between 0.031-0.044 W/m·K, making it effective in reducing heat transfer.
Lightweight Structure: It is lighter than rockwool wall sandwich panels, reducing load on the building structure.
Good Sound Absorption: Glass wool has a noise reduction coefficient (NRC) of 0.85-1.00, making it suitable for soundproofing applications.
Fire Resistance: It has a fire resistance rating of A1, meaning it is non-combustible and does not contribute to fire spread.
Moisture Resistance: Glass wool has low water absorption, enhancing durability in humid environments.
Eco-Friendly Material: Made from up to 80% recycled glass, contributing to sustainable construction.
Commercial and industrial buildings
Residential housing insulation
Prefabricated structures
HVAC duct insulation
Warehouses and cold storage facilities

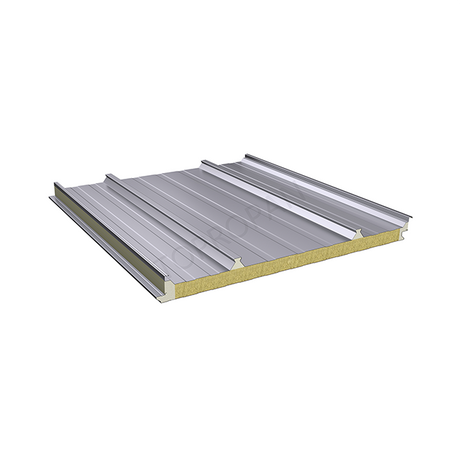

A rockwool wall sandwich panel consists of a rock wool insulation core enclosed by two steel sheets. Rock wool is made from basalt rock and other minerals, which are melted at high temperatures and spun into fiber-like structures. This process creates a dense and fire-resistant insulation material.
Superior Fire Resistance: Rock wool has a melting point above 1000°C and is classified as A1 non-combustible, making it ideal for fire-rated applications.
High Thermal Performance: The thermal conductivity of rock wool ranges from 0.035-0.040 W/m·K, providing excellent insulation.
Exceptional Soundproofing: Due to its dense structure, rock wool has an NRC of 0.90-1.00, making it highly effective in reducing noise.
Moisture and Mold Resistance: It has strong water repellency and does not support mold growth.
Durability and Structural Strength: Rockwool wall sandwich panels are mechanically stronger than glass wool panels, making them suitable for high-load applications.
Fireproof walls in industrial buildings
High-rise building insulation
Acoustic insulation in auditoriums and studios
Power plants and chemical facilities
Cold storage and cleanroom environments
To help you make an informed decision, let's compare glass wool wall sandwich panels and rockwool wall sandwich panels based on key factors:
| Feature | Glasswool Wall Sandwich Panel | Rockwool Wall Sandwich Panel |
|---|---|---|
| Thermal Conductivity | 0.031-0.044 W/m·K (Good) | 0.035-0.040 W/m·K (Better) |
| Fire Resistance | A1 (Non-combustible) | A1 (Higher melting point, better fire resistance) |
| Sound Absorption | NRC 0.85-1.00 (Good) | NRC 0.90-1.00 (Better) |
| Weight | Lighter | Heavier |
| Moisture Resistance | Low water absorption | Water-repellent and mold-resistant |
| Mechanical Strength | Moderate | Stronger |
| Eco-Friendliness | Made from recycled glass | Made from natural rock |
Glass wool wall sandwich panels are lighter, more affordable, and provide good thermal and sound insulation. They are ideal for general insulation needs in warehouses, offices, and prefabricated buildings.
Rockwool wall sandwich panels offer superior fire resistance, soundproofing, and mechanical strength. They are best suited for fire-sensitive areas like power plants, high-rise buildings, and industrial applications.
The choice between glass wool wall sandwich panels and rockwool wall sandwich panels depends on your project requirements. Here's a breakdown of which is better based on different criteria:
For Fire Safety: Rockwool wall sandwich panels are better due to their higher melting point and resistance to fire spread.
For Cost Efficiency: Glass wool wall sandwich panels are the more economical option while still providing effective insulation.
For Soundproofing: Rock wool panels perform slightly better due to their higher density.
For Lightweight Applications: Glass wool panels are preferable because they exert less structural load.
For Durability in Harsh Environments: Rock wool panels are more robust and resistant to moisture and mold.
The demand for glass wool wall sandwich panels and rock wool wall sandwich panels is increasing due to stricter energy efficiency and fire safety regulations. Some notable trends include:
Integration of smart insulation technologies for better energy management.
Eco-friendly advancements, such as the use of bio-based binders in glass wool manufacturing.
Hybrid insulation solutions, combining glass wool and rock wool for optimized performance.
Both glass wool wall sandwich panels and rock wool wall sandwich panels have their own advantages and specific use cases. If you need lightweight insulation, glass wool is the better choice. However, if fire resistance, durability, and superior soundproofing are your priorities, rock wool is the preferred option.
By understanding the thermal performance, fire resistance, sound absorption, and overall durability of each material, you can make an informed decision for your construction needs.
1. Which is more fire-resistant, glass wool or rock wool?
Rock wool wall sandwich panels have a higher melting point and provide better fire resistance than glass wool wall sandwich panels.
2. Are glass wool and rock wool environmentally friendly?
Yes, both materials are sustainable. Glass wool is made from recycled glass, while rock wool is derived from natural stone.
3. Can rock wool be used for residential insulation?
Yes, but due to its higher cost and weight, it is typically used for fire-rated walls, industrial buildings, and high-rise structures.
4. Do glass wool and rock wool absorb moisture?
Rock wool has better water-repellent properties, while glass wool has low moisture absorption but may require additional vapor barriers in humid environments.
